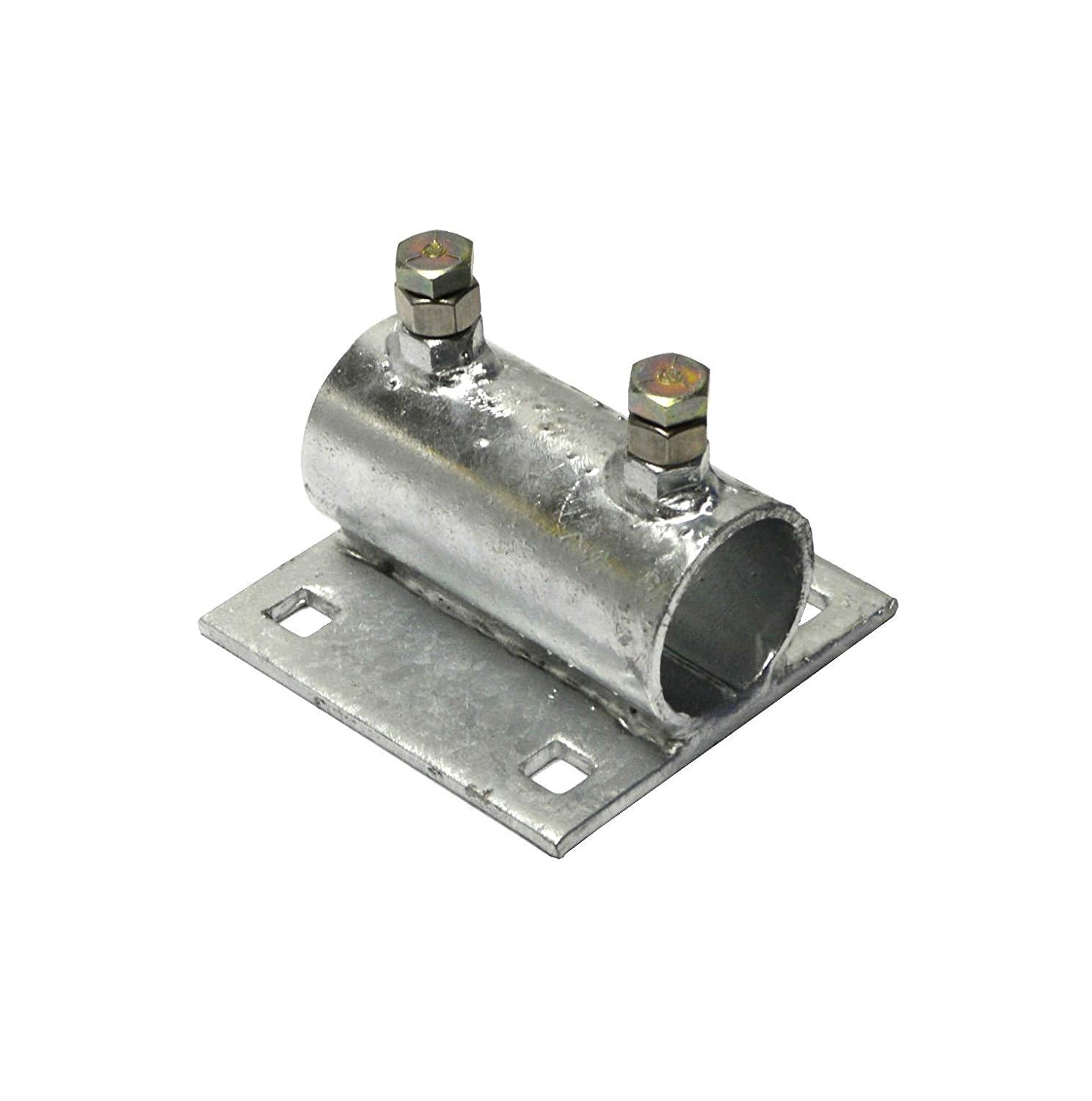

2″ Stationary Pipe Holder On 5″ X 5″ Backer Plate

2″ Pipe Holder (0n 5″ X 5″ Backer Plate)

The Pipe that is mounted on the plate has inside diameter of 2″ and an outside diameter of 2.5″.

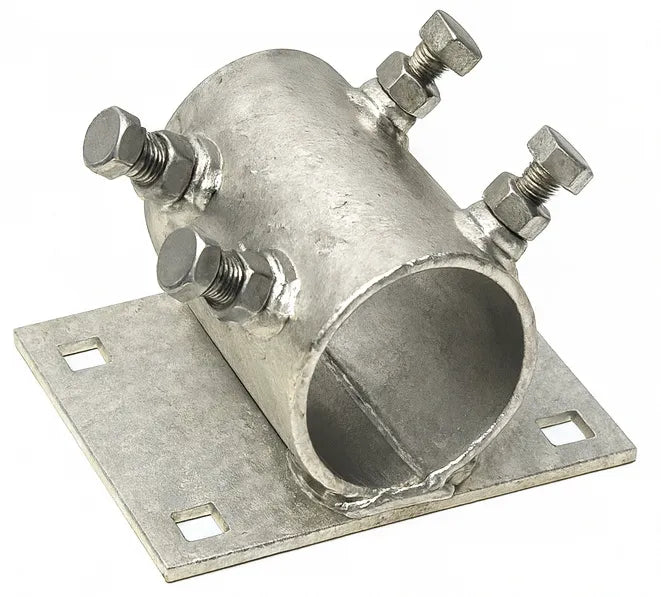

3″ Stationary Pipe Holder On 5″ X 6.75″ Backer Plate

3″ Pipe Holder (On 5″ X 6.75″ Backer Plate)

The Pipe that is mounted on the plate has inside diameter of 3″ and an outside diameter of 3.5″.

½” Cross Clamp – Allows for ” X ” bracing of (2) – 1/2″ pipes.    It is manufactured using cast aluminum so it is built to last.  Using this for diagonal bracing will help stabilize your dock.

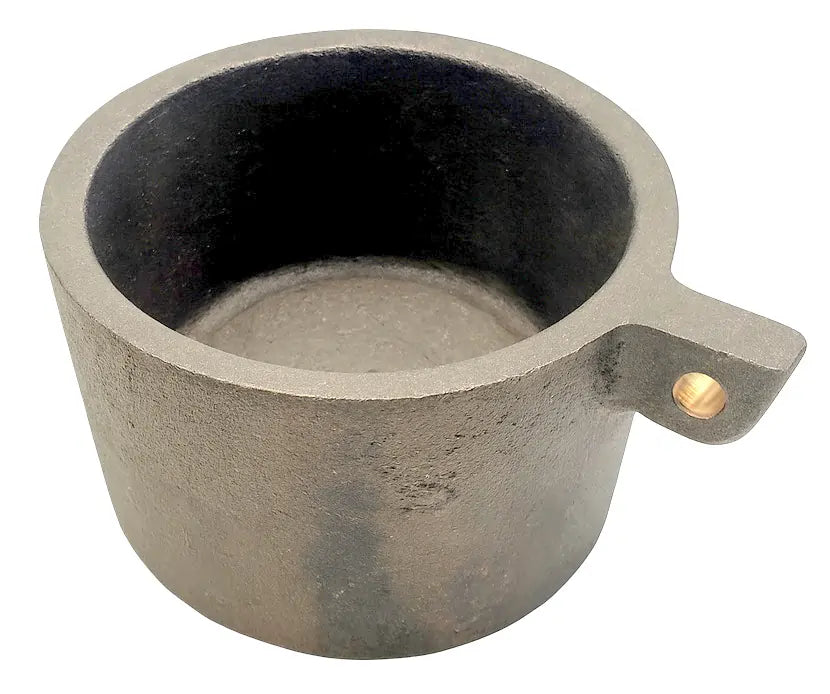

1.5” Pipe Outside Drive Cap  –  Drive Caps fit over your 1.5″ pipe legs are used to drive pipe into the lake bottom.  The caps aid in preventing damage to the pipe. A small piece of rope can be tied to the Drive Cap to secure and avoid loss.

2.0” Pipe Outside Drive Cap  –  Drive Caps fit over your 2″ pipe legs are used to drive pipe into the lake bottom.  The caps aid in preventing damage to the pipe. A small piece of rope can be tied to the Drive Cap to secure and avoid loss.

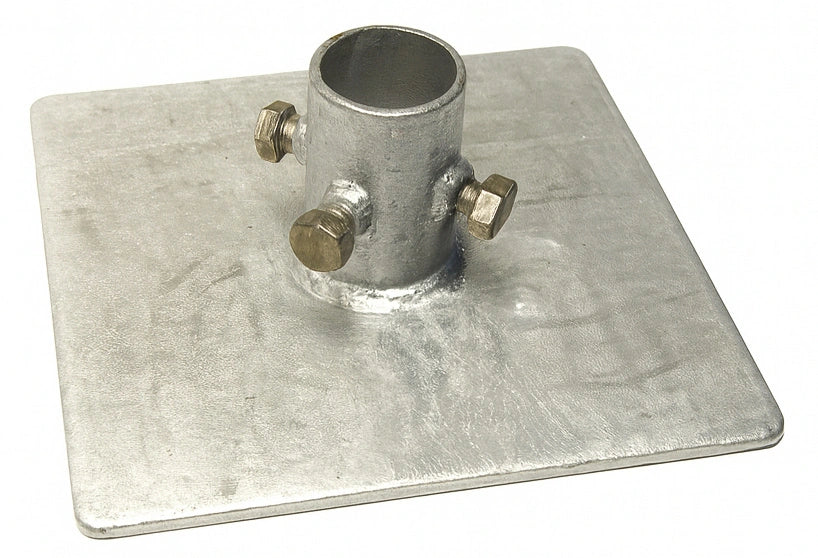

This 2″ mud foot is manufactured using quality 1/4″ fully galvanized steel. The pipe has a 2.5″ outer dimension and a 2″ inner dimension. The holder is quality welded onto a 10″ x 10″ galvanized steel base plate. Includes (1) 1/2″ pinch bolt and (1) 1/2″ through bolt for securing your pipe. This part is proudly manufactured in the USA.

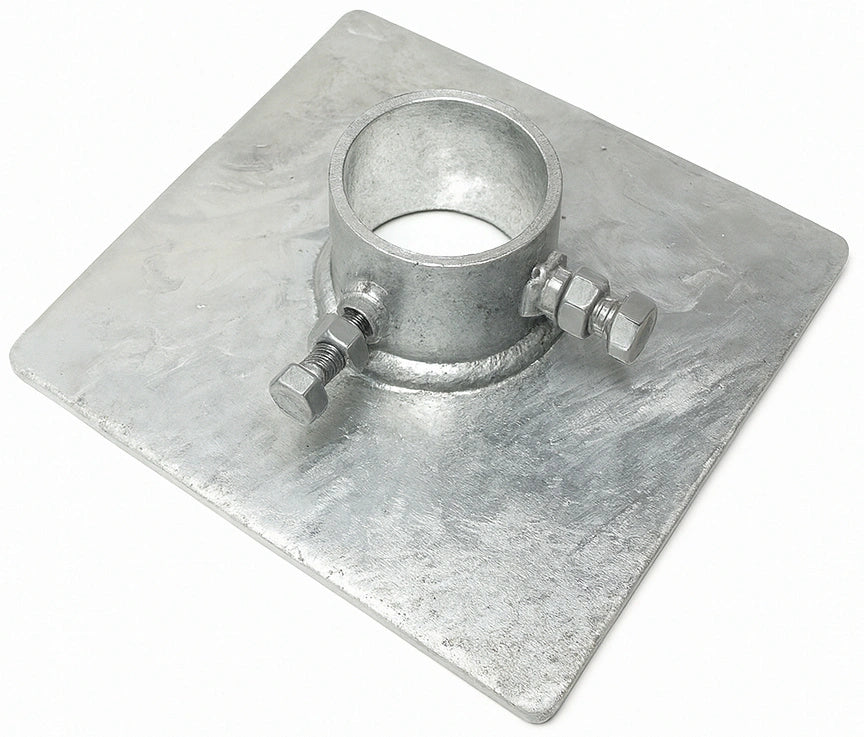

This 3″ mud foot is manufactured using quality 1/4″ fully galvanized steel. The pipe has a 3.5″ outer dimension and a 3″ inner dimension. The holder is quality welded onto a 10″ x 10″ galvanized steel base plate. This part is proudly manufactured in the USA.

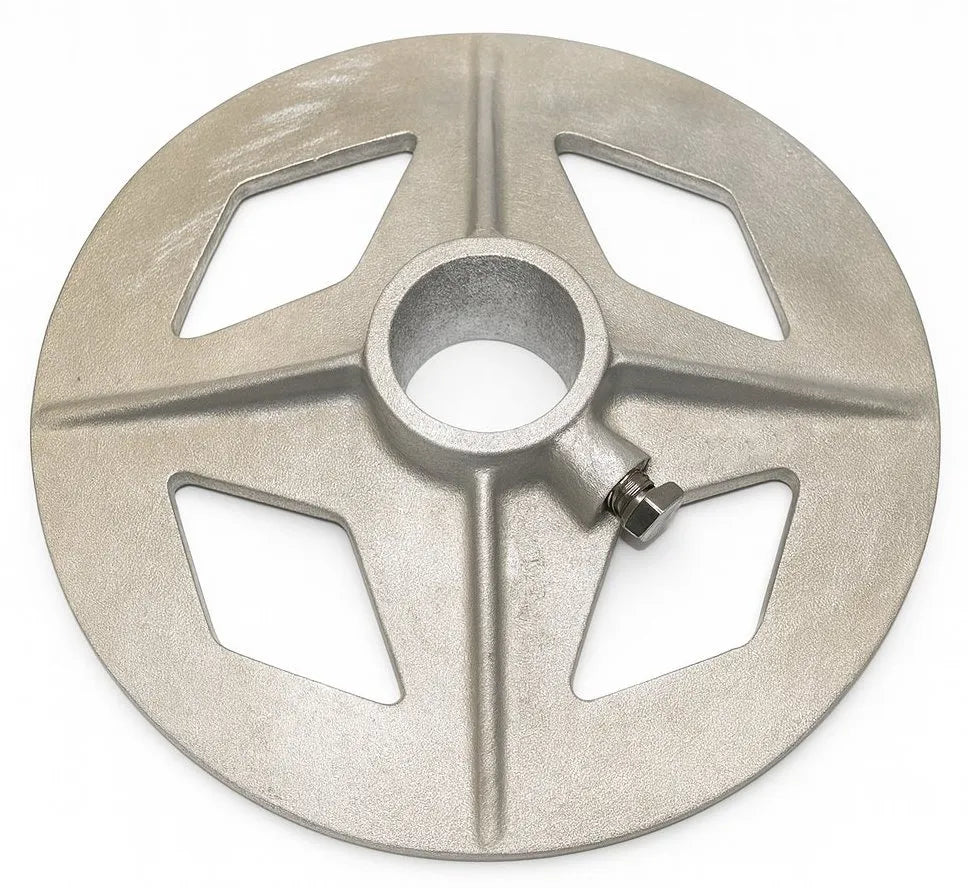

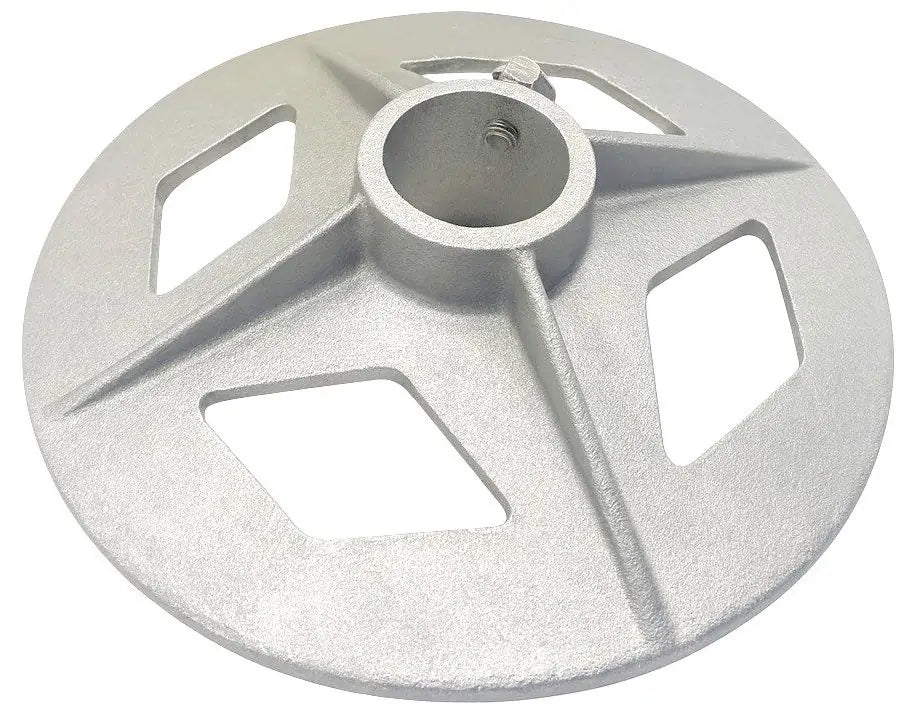

This 1.5″ boat dock mud foot easily attaches to the end of your dock pipe. It's manufactured using cast aluminum so it's built to last. Helps stabilize your dock to the seabed.  (Extending the pipe through the center of the plate and into the lake bed is suggested.)

This 1.5″ boat dock mud foot easily attaches to the end of your dock pipe. It’s manufactured using cast aluminum so it’s built to last. Helps stabilize your dock to the seabed.  (Extending the pipe through the center of the plate and into the lake bed is suggested.)

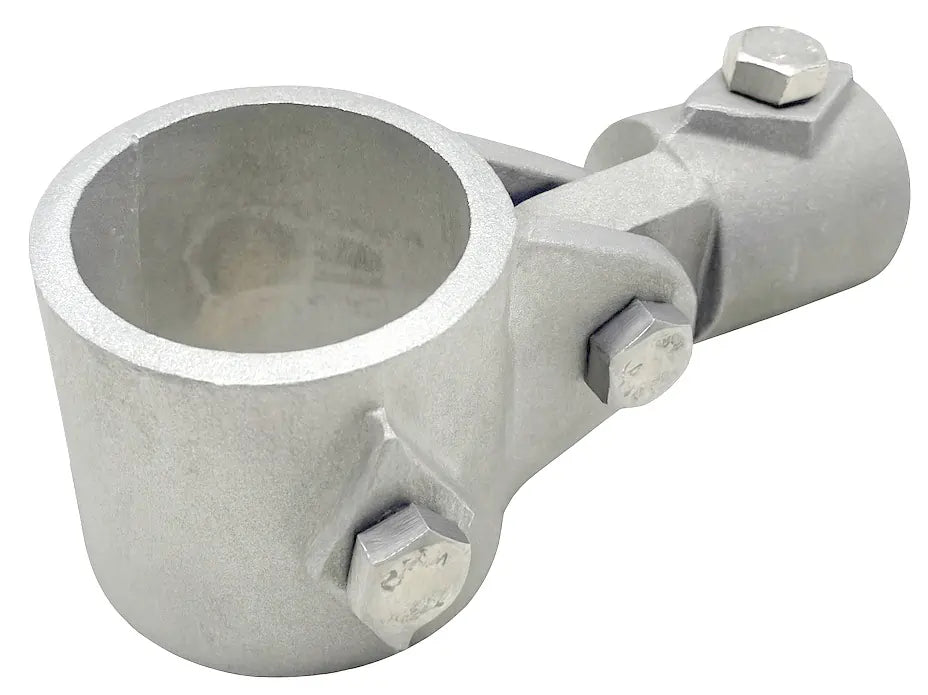

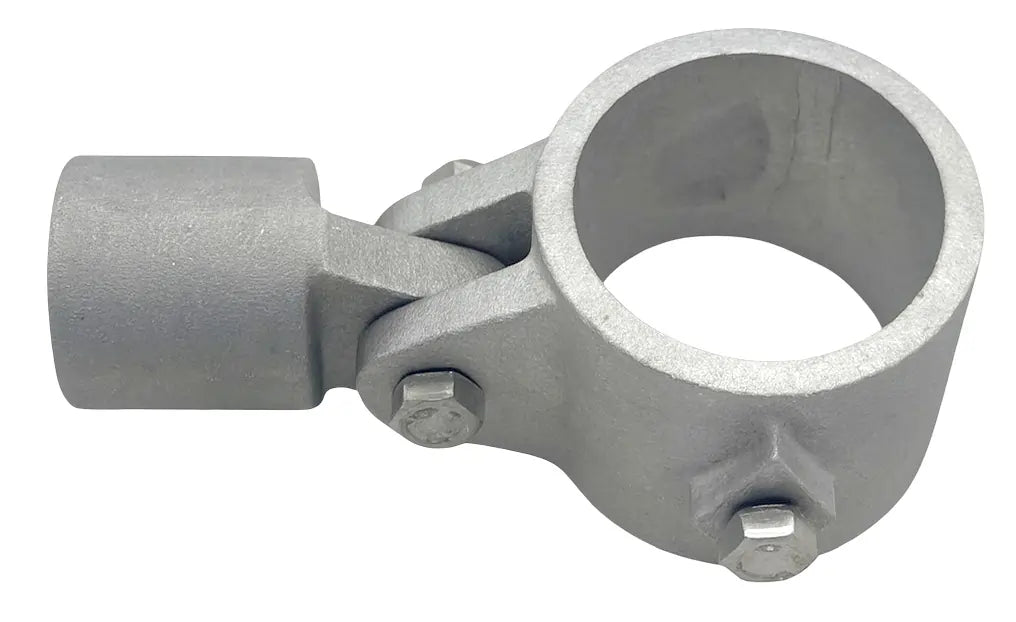

This 1.5″ adjustable brace is usually used for new builds or docks that come in and out each year.  (The DH PABA1.5-S usually works better for existing docks.)  It is manufactured using cast aluminum so it is built to last.  Using this for diagonal bracing will help stabilize your dock.

This 2″ adjustable brace is usually used for new builds or docks that come in and out each year.  (The DH PABA2.0-S usually works better for existing docks.)  It is manufactured using cast aluminum so it is built to last.  Using this for diagonal bracing will help stabilize your dock.

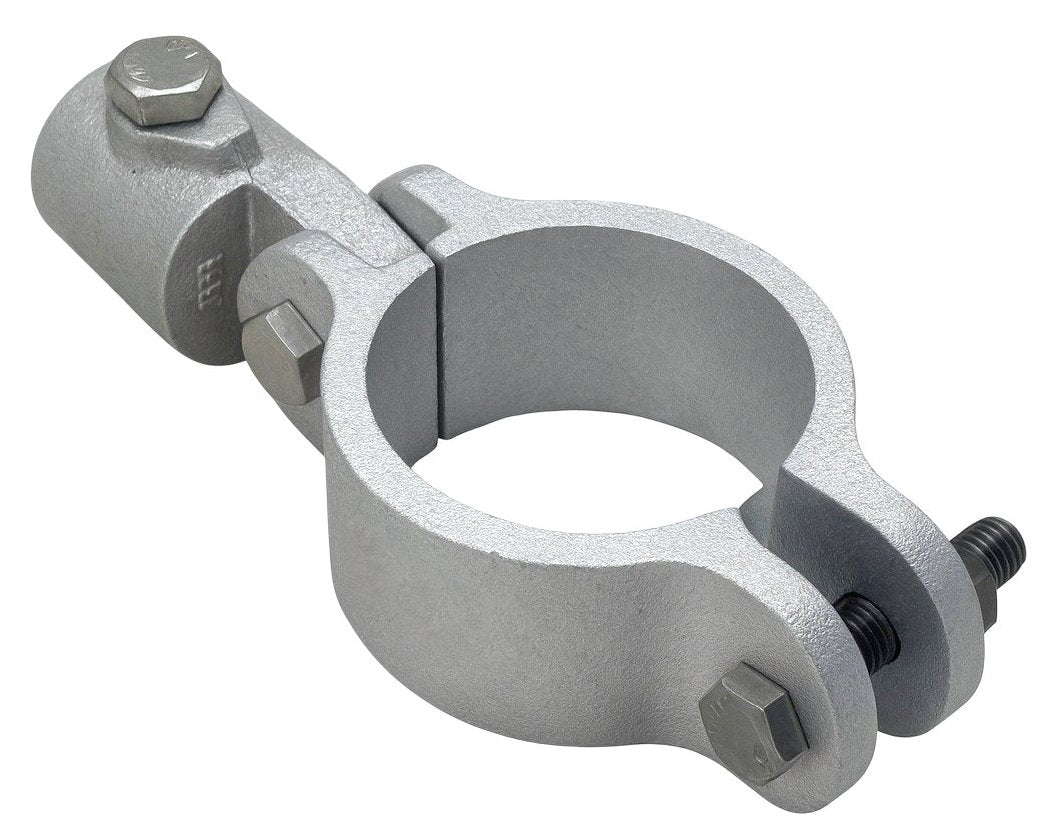

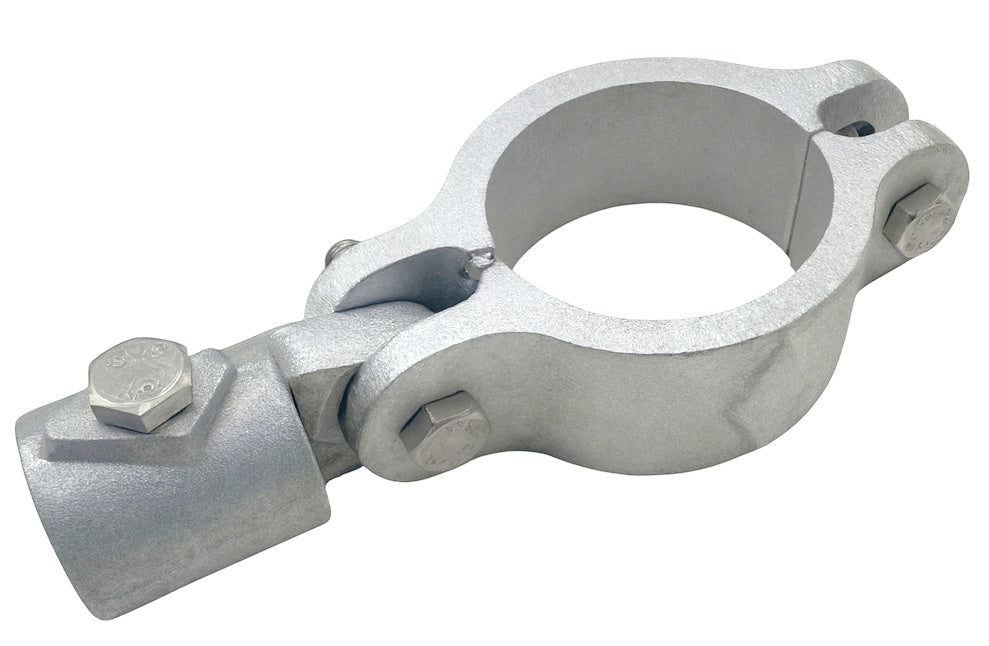

This 1.5″ adjustable brace split assembly can be used on a variety of docks.   It is manufactured using cast aluminum so it is built to last.  Using this for diagonal bracing will help stabilize your dock.

This 2.0″ adjustable brace split assembly can be used on a variety of docks.   It is manufactured using cast aluminum so it is built to last.  Using this for diagonal bracing will help stabilize your dock.

This 1.5″ pipe auger easily attaches to the end of your dock pipe. It’s manufactured using cast aluminum so it’s built to last. Helps stabilize your dock to the seabed.  (Drilling through the pipe & pipe point or with 2 set screws is suggested.)

This 2.0″ pipe auger easily attaches to the end of your dock pipe. It’s manufactured using cast aluminum so it’s built to last. Helps stabilize your dock to the seabed.  (Drilling through the pipe & pipe point or with 2 set screws is suggested.)

The Pipe Corner Brackets are used with 1.5″ ID pipe legs.  Bracket can be used if the pipes will be on the inside of the dock or when a section of dock is connected at a 90 degree angle.

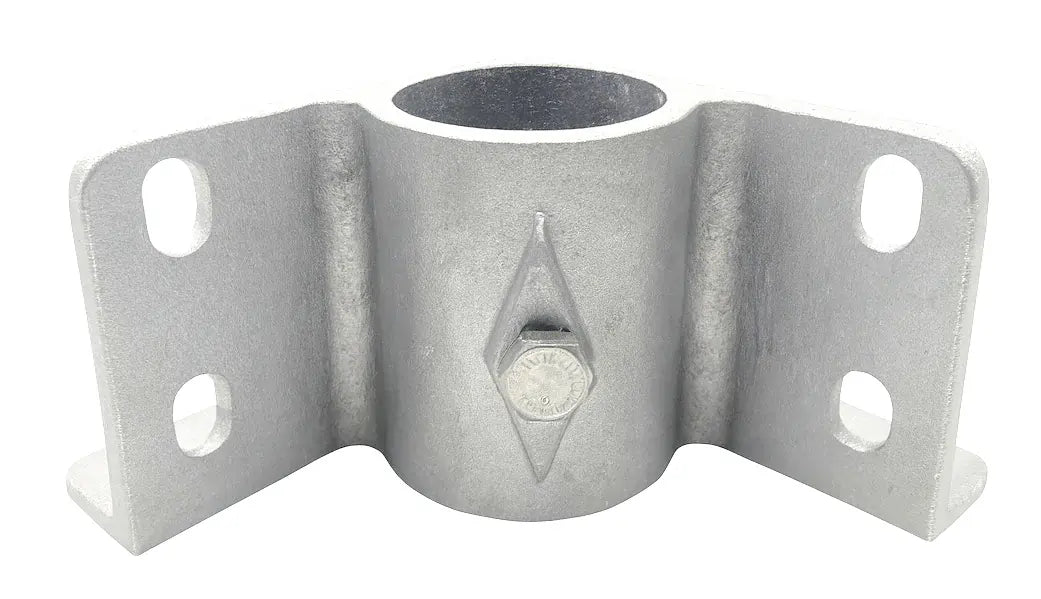

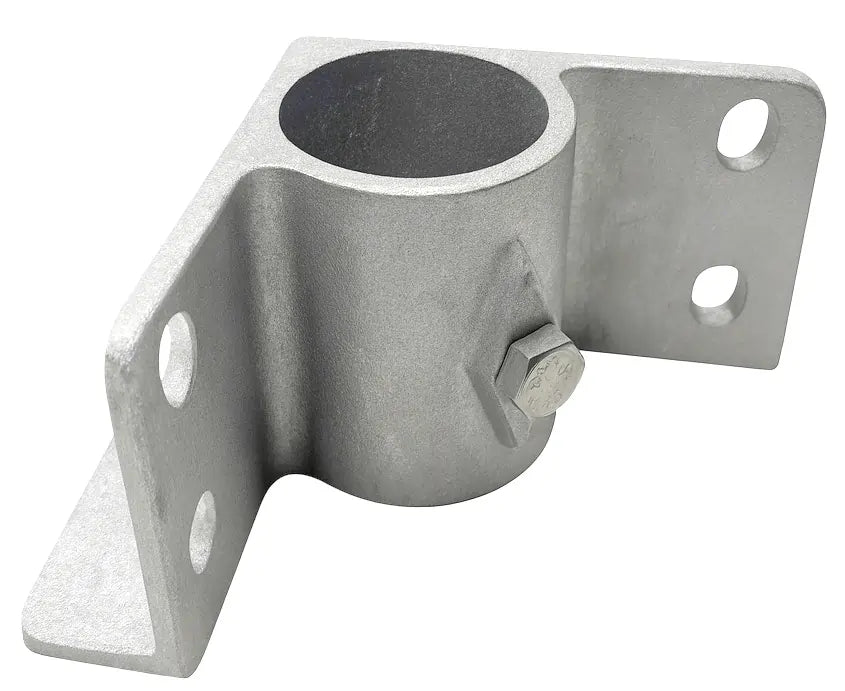

The Pipe Corner Brackets are used with 2″ ID pipe legs.  Bracket can be used if the pipes will be on the inside of the dock or when a section of dock is connected at a 90 degree angle.

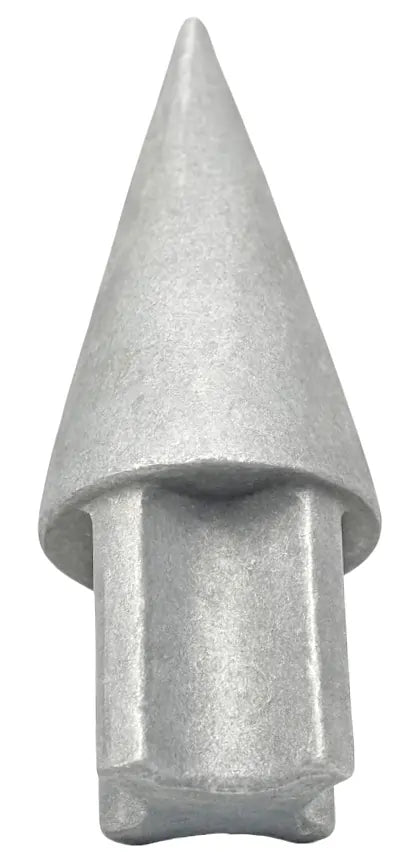

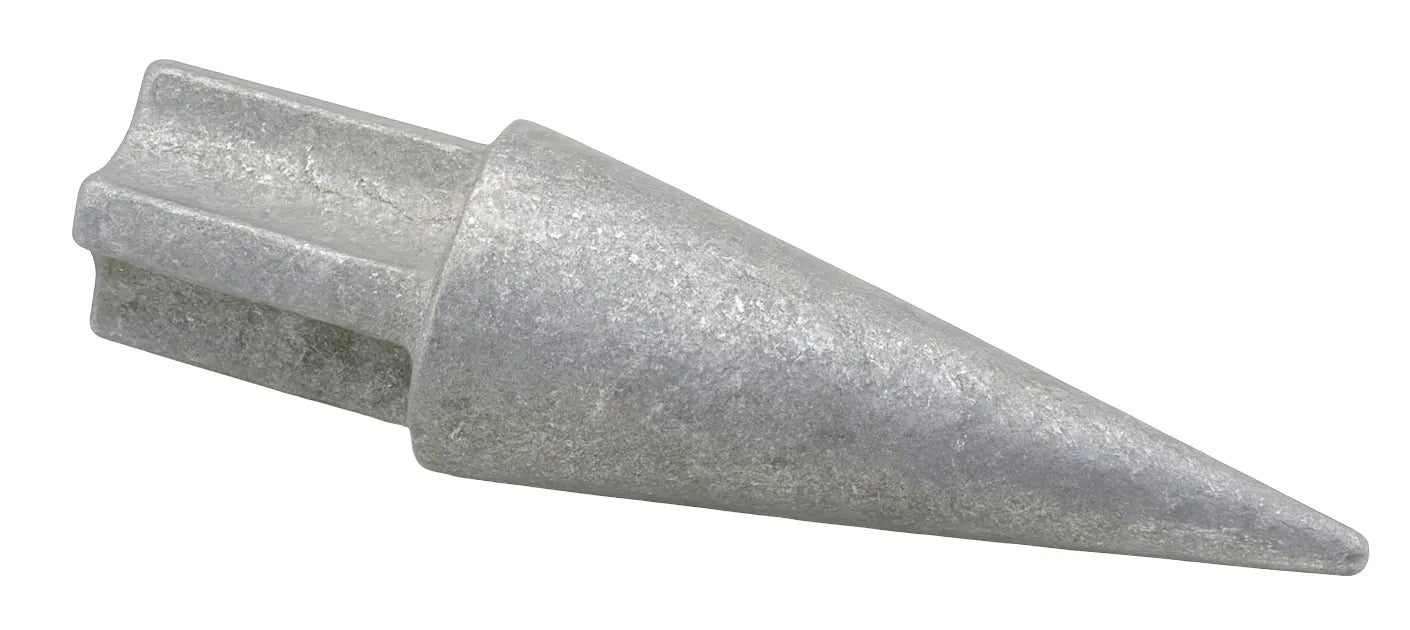

This 1.5″ pipe point easily attaches to the end of your dock pipe. It’s manufactured using cast aluminum so it’s built to last. Helps stabilize your dock to the seabed.  (Drilling through the pipe & pipe point or with 2 set screws is suggested.

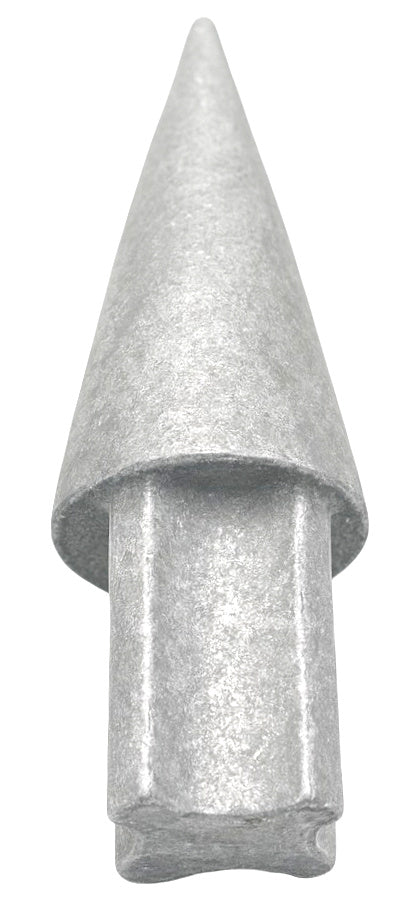

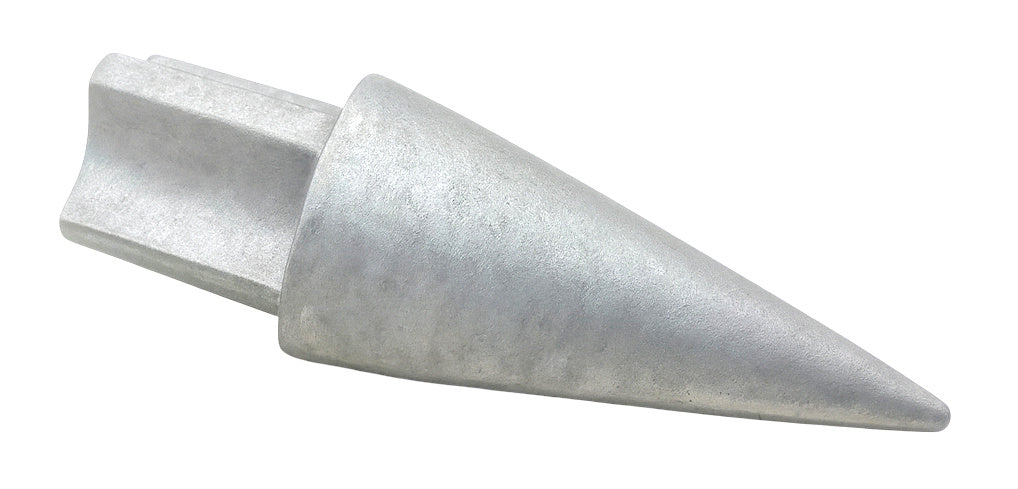

This 2.0″ pipe point easily attaches to the end of your dock pipe. It’s manufactured using cast aluminum so it’s built to last. Helps stabilize your dock to the seabed.  (Drilling through the pipe & pipe point or with 2 set screws is suggested.

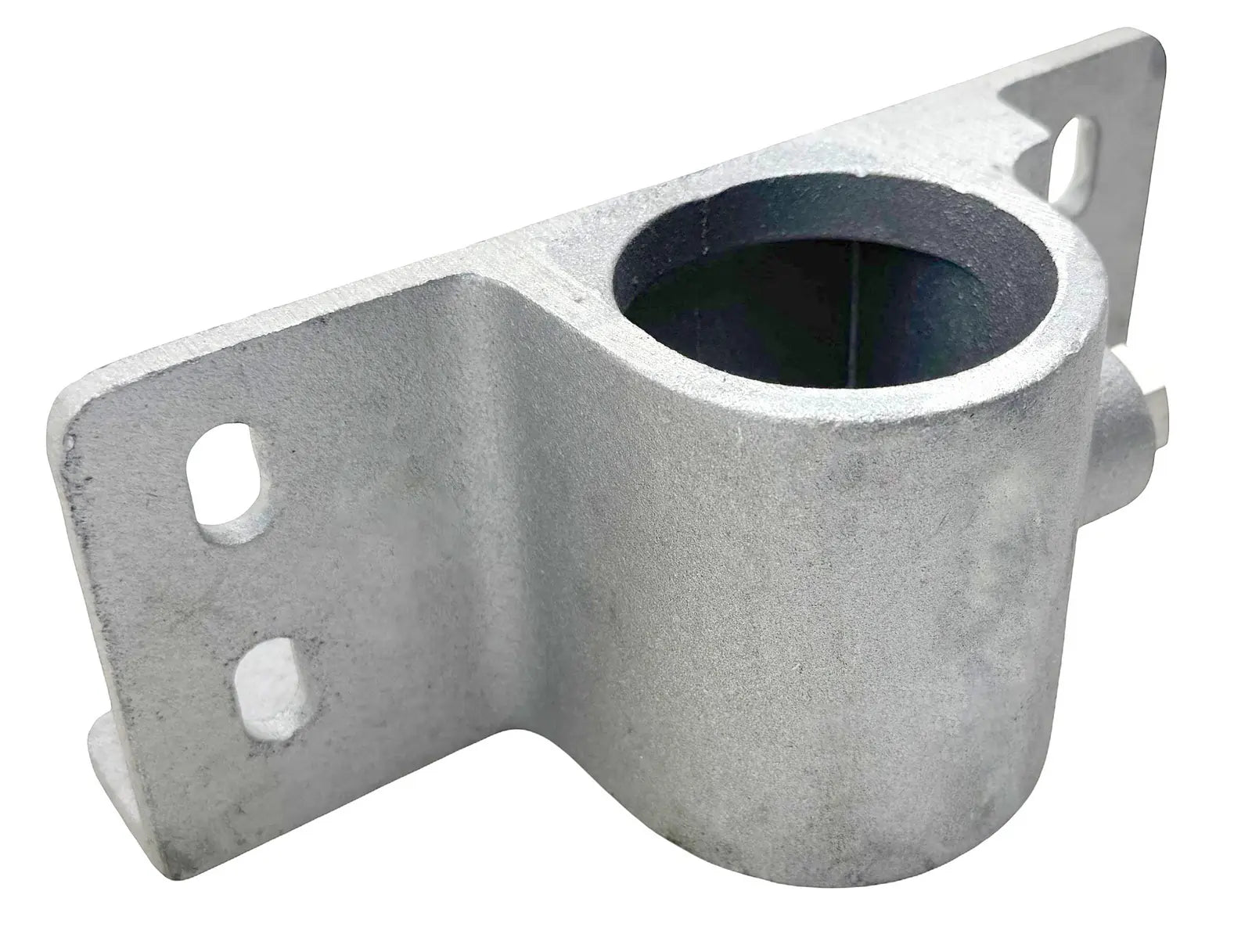

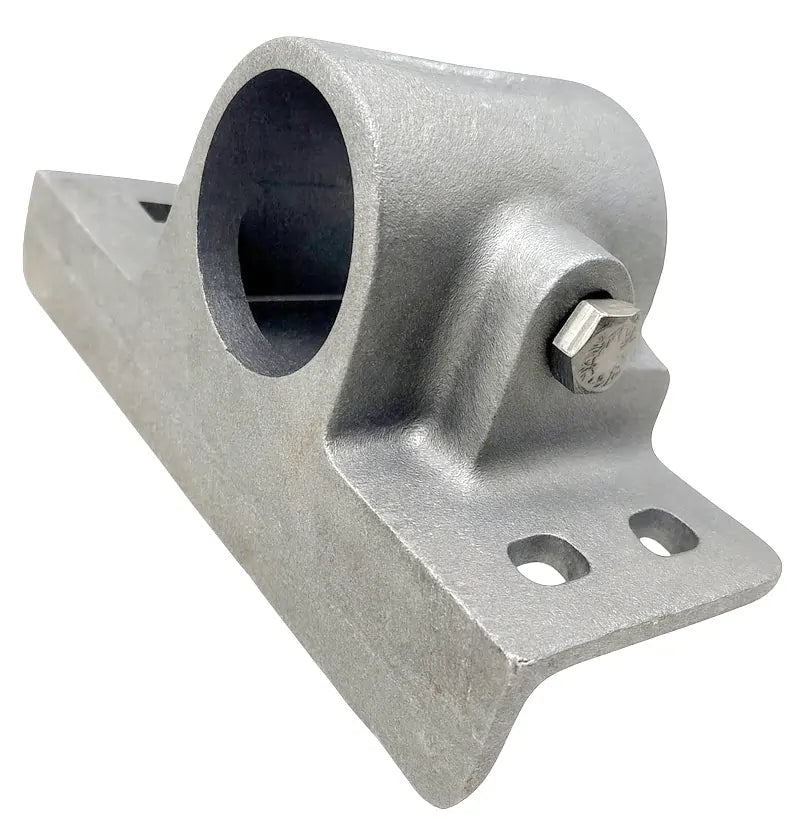

The Pipe Side Brackets are used with 1.5″ ID pipe legs.  Bracket can be used for attaching pipe to dock or for mounting handrails.

The Pipe Side Brackets are used with 2″ OD (outside diameter) pipe legs.  Bracket can be used for attaching pipe to dock or for mounting handrails.
