Description

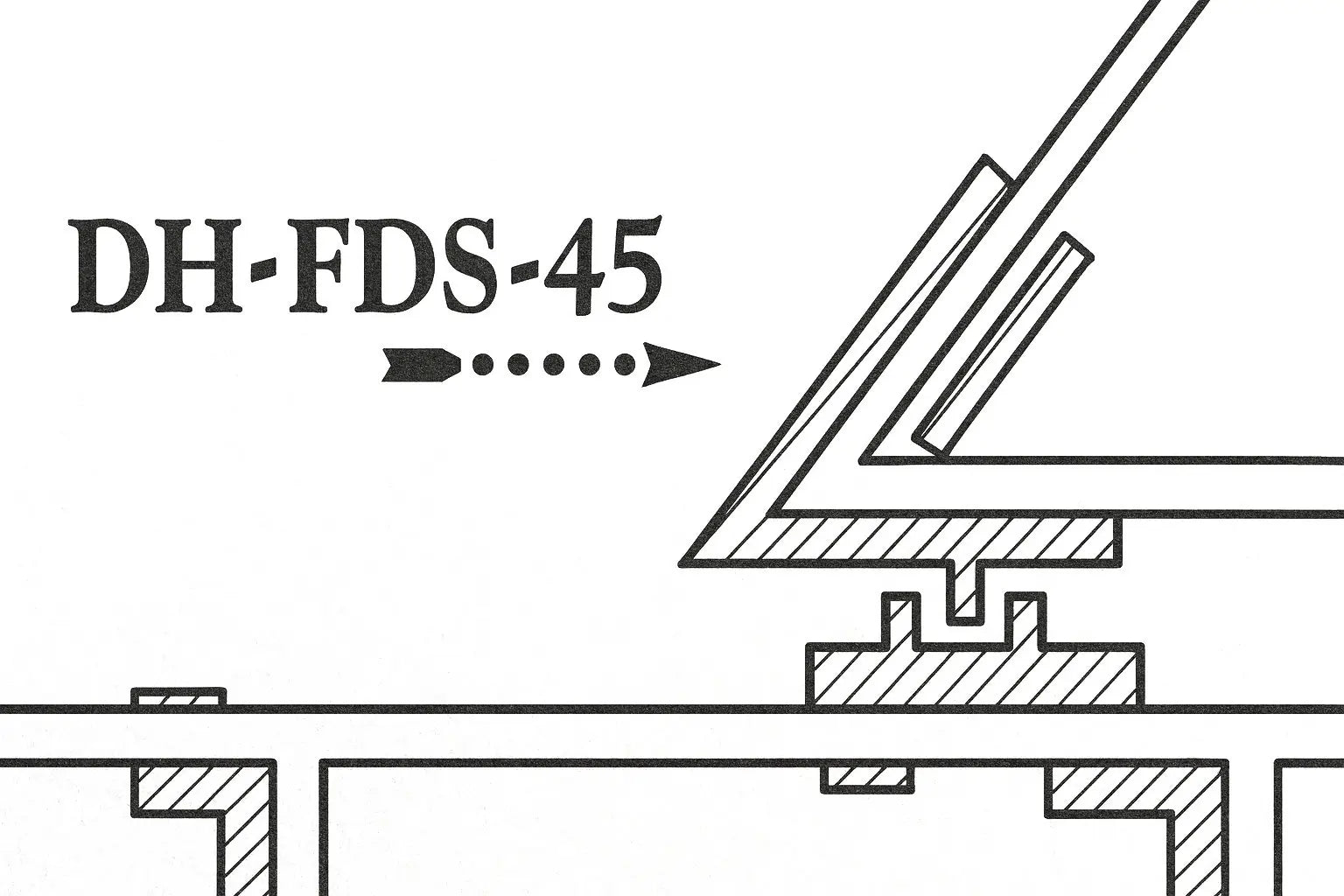

The Dock Hardware DH-FDS-45 Dock Corner Bracket is designed to tie angled dock sections securely back into the main dock frame. Built for use with angled corners, this bracket is the perfect companion to the Dock Hardware DH-IN135 135 degree Angle Bracket, which frames the angled section.

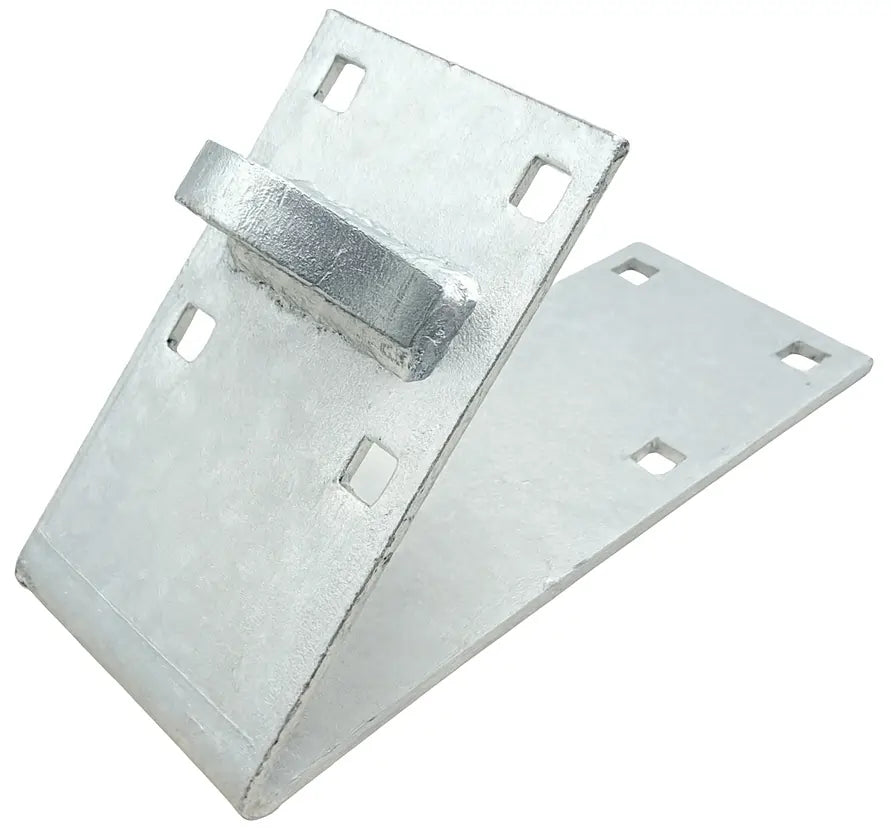

Each DH-FDS-45 is manufactured from 1/4" thick galvanized steel with 12" x 8" legs, offering a wide fastening surface and superior durability in marine environments. The bracket features a welded 3/4" male ear, which is engineered to mate directly with the Dock Hardware DH-TF Female Connector (not included). To lock the connection, simply use a Dock Hardware DH-PIN3 Connector Pin (1/2" x 3") with hitch clip (not included).
With its heavy-duty construction, hot-dip galvanized finish, and secure connector system, the DH-FDS-45 ensures that angled dock corners—often referred to as walk-off corners—are not only possible but built to last.
Item Specifics
- Model DH-FDS-45 – 45° dock corner angle bracket engineered to secure angled dock sections back to the main dock frame.
- Welded Male Ear Connector – Features a 3/4" welded male ear that mates with the Dock Hardware DH-TF Female Connector (sold separately) for strong, reliable connections.
- Heavy-Duty Galvanized Steel – Constructed from 1/4" thick American steel with a hot-dip galvanized finish for long-lasting corrosion resistance in marine environments.
- Large Plate Size – 12" x 8" legs provide a wide fastening surface for maximum dock stability.
- Companion to DH-IN135 – Pair with the Dock Hardware DH-IN135 135° Angle Bracket (sold separately) to build smooth angled corners (often called walk-off corners).
- Made in the USA: Built to meet marine-grade standards with unmatched durability
