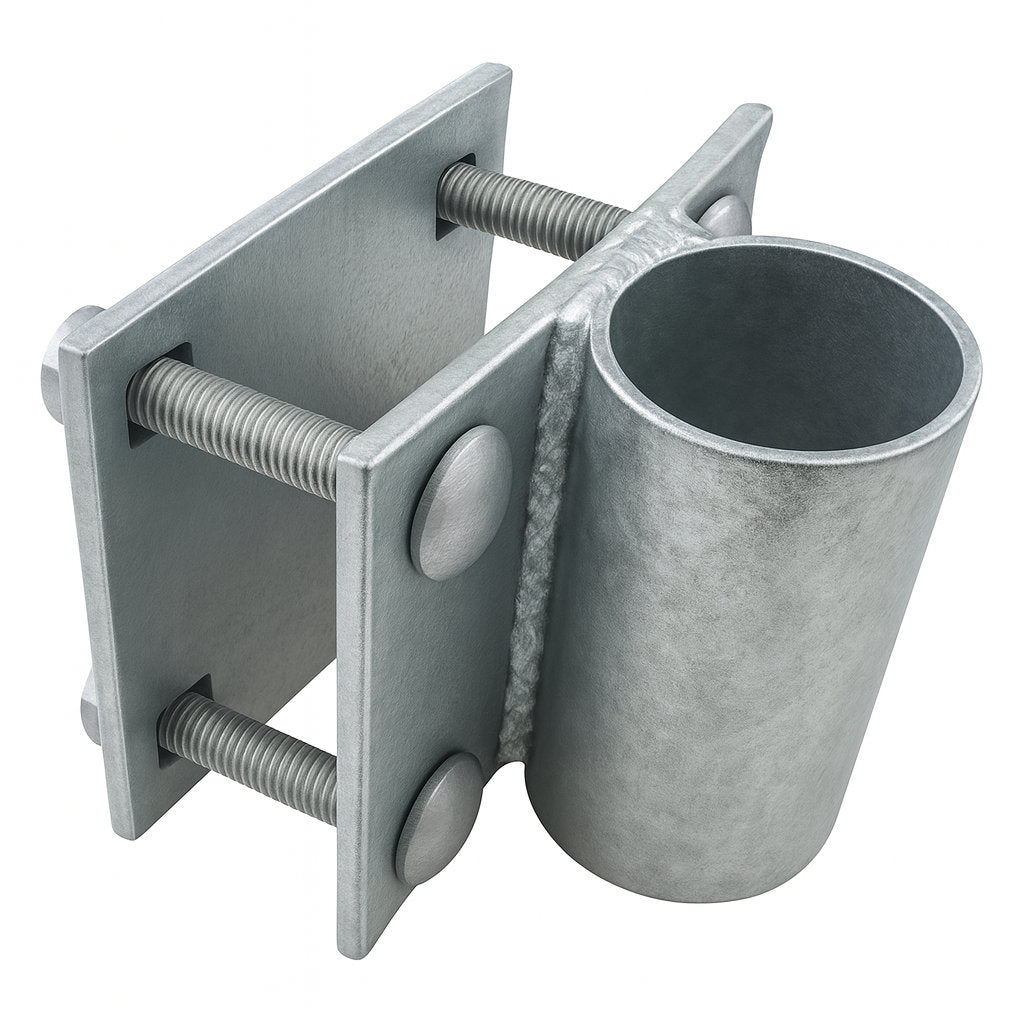

Dock Hardware 2″ Dock Pipe Holder Kit for Floating Docks – USA-Made Galvanized Steel Pipe Mount with 5″×5″ Backer Plate & Installation Hardware

Overview

The Dock Hardware 2″ Dock Pipe Holder Kit provides everything needed to mount a pipe holder to a floating dock frame. This setup delivers a secure connection point for vertical guide pipes or dock posts, helping your dock stay aligned and stable as water levels change. Each kit includes the pipe holder, matching backer plate, and all installation hardware for a complete, ready-to-install assembly.

Includes

• (1) Dock Hardware DH-PH2 2″ Pipe Holder
• (1) Dock Hardware 5″×5″ Backer Plate
• (4) Dock Hardware DH-GCB1230 ½″ × 3″ Galvanized Carriage Bolt Sets (bolts, nuts, washers)

Specifications

• Material: ¼″ Hot-Dip Galvanized Steel
• Pipe Holder Outside Diameter: 2.5″
• Pipe Holder Inside Diameter: 2.0″
• Backer Plate Dimensions: 5″ × 5″
• Hole Size: 9/16″ square holes for ½″ carriage bolts (included)
• Use: Floating dock frames using 2× lumber

Description

The Dock Hardware 2″ Pipe Holder Kit with 5″×5″ Backer Plate creates a strong, balanced connection between your dock frame and vertical guide pipes. The pipe holder and backer plate clamp together using four galvanized carriage bolts, distributing load evenly and preventing twisting or pull-out under stress. All components are made from ¼″ hot-dip galvanized steel for long-term corrosion resistance in freshwater, brackish, and saltwater environments.

Designed for floating dock frames built from standard 2× lumber, this kit ensures a clean, professional installation without the need for additional parts. Like every Dock Hardware product, it’s proudly made in the USA and built to perform season after season.
